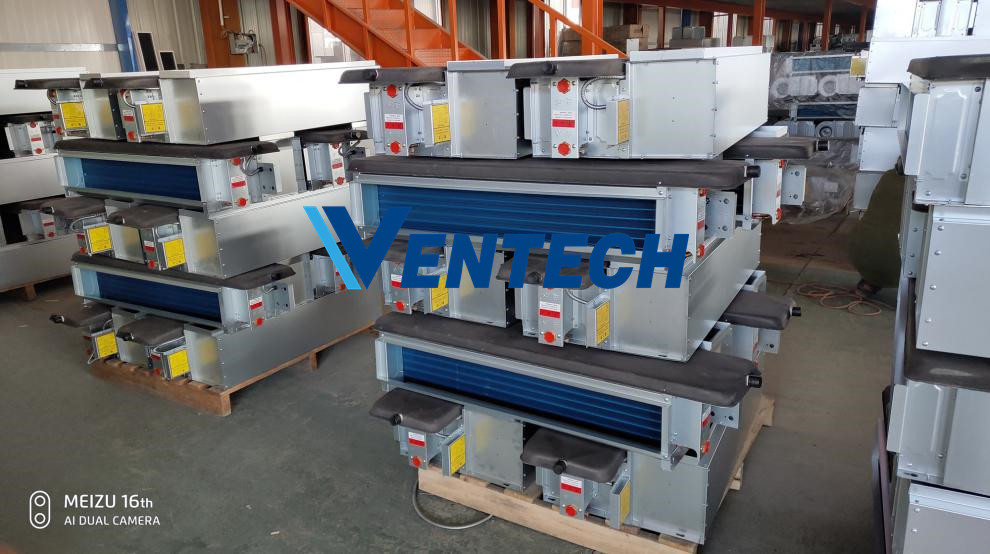

Fan coil unit Air conditioning unit central air conditioner and furnace

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: VH Series

Detail Information
Product Name: Fan Coil Unit Cooling Capacity: 27.5~128.4kw
Heating Capacity: 30.2~141.2kw Sample: Yes(in Charge)
Quality: Superior Certificate: CE
Businesstype: Manufacturer Trademark: VENTECH/VCARE/OEM

Product Description

VENTECH(Vcare) Package FCU--Horizontial packag





VWG horizontal unit H series data

Model Air flow
(m3/h)		 Cooling(kW) Heating(kW) ESP (Pa) Motor power(kW)
4-row 6-row 4-row 6-row 4-row 6-row
Return air Fresh air Return air Fresh air Return air Fresh air Return air Fresh air I II I II I II
VWG050H 5000 29.0 64.2 38.5 83.2 43.2 71.9 57.3 94.8 150 300 1.1 1.1 1.1 1.5
VWG060H 6000 35.5 70.9 47.0 96.5 52.9 79.4 70.0 110.0 160 300 1.5 1.5 1.5 2.2
VWG070H 7000 43.0 87.3 56.1 115.8 64.1 97.8 83.6 132.0 170 350 1.5 2.2 1.5 2.2
VWG080H 8000 50.3 102.2 65.2 129.8 74.9 114.5 97.1 148.0 180 350 1.5 2.2 1.5 2.2
VWG090H 9000 55.8 113.8 72.5 155.0 83.1 127.5 108.0 176.7 190 350 2.2 2.2 2.2 3.0
VWG100H 1000 60.0 130.0 77.5 169.3 89.4 145.6 115.5 193.0 200 400 2.2 3.0 2.2 3.0
VWG120H 12000 74.3 151.8 94.5 203.2 110.7 170.0 140.8 231.6 210 400 3.0 4.0 3.0 4.0
VWG140H 14000 86.0 179.5 110.9 241.2 128.1 201.0 165.2 275.0 220 400 3.0 4.0 3.0 4.0
VWG160H 16000 100.7 211.7 130.3 266.1 150.0 237.1 194.1 303.4 230 450 4.0 5.5 4.0 5.5
VWG180H 18000 115.8 240.3 146.6 302.0 172.5 269.1 218.4 344.3 240 450 4.0 5.5 5.5 7.5
VWG200H 20000 131.6 269.3 164.8 326.7 196.1 301.6 245.6 372.4 250 450 5.5 7.5 5.5 7.5
VWG220H 22000 136.3 277.0 177.3 338.6 203.1 310.2 264.2 386.0 260 500 5.5 7.5 7.5 11.0
VWG2S0H 25000 157.3 330.8 202.5 407.0 234.4 370.5 301.7 464.0 270 500 7.5 11.0 7.5 11.0
VWG280H 28000 176.1 359.1 226.8 485.2 262.4 402.2 337.9 553.1 280 500 7.5 11.0 7.5 11.0
VWG300H 30000 191.6 390.0 245.8 509.2 285.5 436.8 366.2 580.8 290 550 11.0 11.0 11.0 11.0
VWG350H 36000 223.6 438.5 286.7 596.6 333.2 491.1 427.2 680.1 310 550 11.0 15.0 11.0 15.0
VWG400H 40000 255.5 501.2 327.6 677.3 380.7 561.3 488.1 772.1 330 600 15.0 15.0 15.0 18.5
VWG450H 46000 276.6 577.0 374.5 748.5 412.1 646.2 558.0 853.3 350 600 7.5x2 11x2 7.5x2 11x2
VWG500H 50000 297.5 641.2 416.2 795.8 443.3 718.1 620.1 907.2 370 650 7.5x2 11x2 7.5x2 11x2







Important Factors for Choosing Central AC

Maintenance
Central AC systems need regular maintenance for optimal performance. When you negotiate your installation, it's worth negotiating a service plan that combines regular inspections with discounts on repairs and a labor warranty into the overall price. Prices for such a service can vary widely.

Programmable thermostats
Setting your smart or programmable thermostat at the right temperature can reduce your cooling costs by about 10 percent. The right temperature varies on your comfort level, but start by setting it at 78° F and experiment until you find the sweet spot. You’ll save about 3 percent on your utility bill for every degree you raise the set temperature for your central air, according to the Department of Energy. And keep in mind that using a box or ceiling fan, which costs little to run, can make you feel 3° F to 4° F cooler.

Upgrading an existing system
If you’re upgrading your central air, don’t assume you should buy the same-sized system. Any changes you’ve made to improve your home’s energy efficiency, such as upgrading your windows or adding insulation, can reduce your cooling needs. On the other hand, if you’ve added rooms, you might need more cooling.



❤ Want to learn more about Vcare Wholehouse air conditioner,please contact us by email directly.

Email:karen@chinaventech.com

Tel:0086 13620119598
