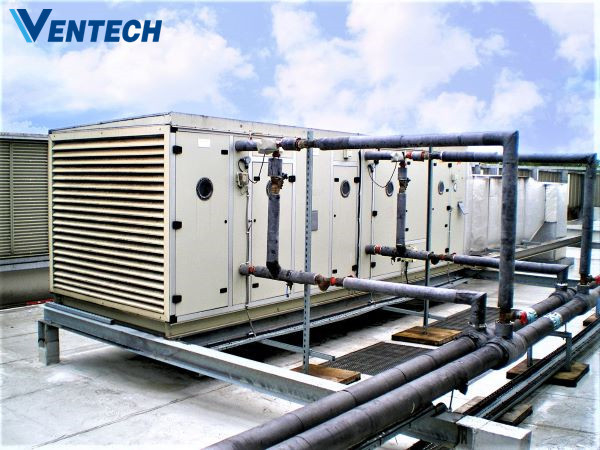

50ft Central Air Conditioning Unit Diagram Modular Air Handing Unit

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Modular air handing unit

Detail Information
Product Name: Modular Air Handing Unit Working Pressure: Different Working Pressure
Retun Air: DB 27℃/WB 19.5℃ Length: MAX:50ft
Model: Rooftop Package Unit Size: Customized
Business Type: Factory Trademark: VENTECH
High Light:

50ft Central Air Conditioning Unit

,

CE Central Air Conditioning Unit

Product Description

Air conditioning unit central air conditioner diagram Modular air handing unit

VENTECH(Vcare) Air Conditioning Unit Central Air Conditioner Modular air handing unit

Tech Airflow
(m3/h)		 Cooling coil Vapor coil
Return air condition capacity(kW) Fresh air condition capacity kW) Return ar heating(kW)
Model 2-row 4-row 6-row 8-row 2-row 4-row 6-raw 8-raw 1-row 2-raw
VAH001 1000 3.8 6.2 7.9 8.8 7.7 12.6 16.4 18.4 11.4 21.2
VAH002 2000 7.3 12.0 15.3 17.1 15.6 25.6 33.3 37.4 22.9 42.8
VAH003 3000 11.6 19.0 24.2 27.0 23.2 38.1 49.6 47.7 34.4 64.3
VAH004 4000 14.1 23.1 29.5 32.9 31.3 51 4 66.9 75.1 45.1 84.2
VAH005 5000 17.7 29.0 37.0 41.3 39.3 64.5 84.0 94.3 56.4 104.4
VAH006 6000 21.7 35, 45.3 50.6 43.3 71.1 98.6 104.0 87.6 126.5
VAH007 7000 26.3 43.1 55.0 61.4 53.6 88.0 114.6 128.7 78.8 147.5
VAH008 8000 31.1 50.9 64.9 72.4 63.2 103.7 135.0 151 6 90.0 168.4
VAH009 9000 34.5 56.5 72.0 80.3 69.9 114.7 149.3 167.7 101.2 189.4
VAH010 10000 37.6 61.6 78.5 87.6 80.1 131.4 171.1 192.1 112.4 210.4
VAH012 12000 45.4 74.4 94.9 105.9 93.2 152.9 189.1 223.6 134.8 252.3
VAH014 14000 53.1 87.0 110.9 123.8 110.9 182.0 237.0 266.2 157.2 294.2
VAH016 16000 61.8 101.2 129.0 144.0 129.7 212S 277.1 311.2 179.6 336.2
VAH018 18000 70.7 115.8 147.6 164.7 148.1 243.0 316.4 355.3 202.0 378.1
VAH020 20000 80.4 131.7 167.9 187.4 164.3 269.6 351.0 394.2 225.6 421.2
VAH022 22000 84.1 137.8 176.7 196.1 170.4 279.6 364.0 408.8 252.3 467.5
VAH024 24000 92.3 151.2 192.8 215.2 194.5 319.2 415.6 466.7 266.3 500.9
VAH026 26000 100.1 164.0 200.1 233.3 210.2 344.9 449.0 504.2 293.3 547.6
VAH028 28000 107.8 178.6 225.2 251.3 220.3 361.5 470.7 S28.6 310.6 564.4
VAH030 30000 117.0 191.6 244.3 272.6 239.7 303.3 512.1 575.1 332.7 822.8
VAH035 36000 136.3 223.3 284.7 317.7 268.2 440.1 573.0 643.5 388.1 726S
VAH040 40000 156.1 256.7 326.0 363.8 307.5 504.6 657.0 737.3 443.5 830.2
VAH045 45000 169.2 277.2 363.4 394.4 364.4 581.6 757.2 850.3 498.9 933.9
VAH050 50000 181.8 297.8 379.7 423.7 393.3 645.4 840.3 943.7 564.3 1037.6
VAH055 55000 203.4 333.2 424.8 474.1 436.7 716.6 933.0 1047.8 609.7 1141.3
VAH060 60000 226.8 371.5 473.7 528.6 481.6 790.3 1029.0 1156.6 665.1 1245.0
VAH070 70000 266,7 436.9 667.0 621.6 548.2 899.6 1171.3 1315.4 775.9 1452.4
VAH080 80000 307.2 503.2 641.6 716.0 636.6 1044.7 1380.2 1527.5 886.7 1659.9
VAH090 90000 345.7 566.3 722.0 805.8 714.5 1172.5 1526.6 1714.4 997.5 1867.3
VAH100 100000 384 1 629.2 802.2 895.3 786.4 1290.5 1680.2 1886.9 1108.3 2074.7
VAH110 110000 398.4 652.6 832.1 928.6 - - - - 1219.1 2282.1
VAH120 120000 41.3 678.8 865.2 985.6 - - - - 1329.9 2489.5
VAH130 130000 452.9 741.9 945.9 1055.6 - - - - 1440.7 2696 9
VAH140 140000 491.8 806.6 1027.1 1146.2 - - - - 1551.5 2904.4
VAH150 150000 523.7 857.8 1083.7 1130.6 - - - - 1662.3 3111.8
VAH160 160000 557.2 912.7 1163.7 1298.7 - - - - 1745.0 3279.3
VAH170 170000 586.3 960.4 1224.5 1366.5 - - - - 1854.0 3484.3
VAH180 180000 616.0 1009.0 1296.5 1435.7 - - - - 1963.1 3689.2
VAH190 190000 647.1 1060.0 1351.5 1508.3 - - - - 2072.1 3894.2
VAH200 200000 678.5 1111.4 1417.0 1581.4 - - - - 2143.6 4061.5
VAH220 220000 736.4 1206.2 1537.9 1716.3 - - - - 2399.3 4609.0
VAH250 2S0000 817.6 1339.2 1707.5 1905.6 - - - - 2879.5 5029.9




*Cold water cooling condition: return air :DB 27℃/WB 19.5℃; fresh air DB35℃/WB28℃;cold water inlet/outlet 7℃/12℃.

*Heat water cooling condition: return air :DB 15℃/fresh air DB 7℃;inlet/outlet water: 60℃/50℃.

*Heating retur air condition: DB 15℃,fresh air:DB 7 ℃/vapor inlet:115℃,pressure:0.2Mpa.





Upgrading an existing system
If you’re upgrading your central air, don’t assume you should buy the same-sized system. Any changes you’ve made to improve your home’s energy efficiency, such as upgrading your windows or adding insulation, can reduce your cooling needs. On the other hand, if you’ve added rooms, you might need more cooling.

Have your contractor do a load calculation based on a recognized method, such as one in Manual J from the ACCA. The contractor’s evaluation should include whether your ducts need to be resized, sealed, and insulated, or replaced. Remember that an indoor evaporator coil and outdoor condenser must be a matched set from the same brand, or the performance, efficiency, and capacity might not meet expectations.

New systems are 20 to 40 percent more efficient than minimum-efficiency models made even 10 years ago. Costs will vary and can depend on whether you need ductwork installed, and the particular size and configuration of your home.

Air conditioning requirements across the world are increasing at a significant rate. An increase in temperature, heatwaves, and unpredictable weather is one driver for the high demand. An increase in energy efficiency and affordability is the primary demand driver. Individual requirements vary extensively, and manufacturers are innovating rapidly.

To cater to the varied requirements of home-owners, the manufacturers have made available a wide variety of air conditioners.



❤ Want to learn more about Vcare Wholehouse air onditioner,please contact us by email directly.                                                     Email:karen@chinaventech.com Tel:0086 13620119598
