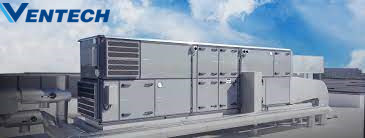

50ft Central Air Conditioner Duct Cleaning Modular Air Handing Unit

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Modular air handing unit

Detail Information
Trademark: VENTECH/VCARE/OEM Working Pressure: Different Working Pressure
Retun Air: DB 27℃/WB 19.5℃ Length: MAX:50ft
Payment Term: TT,LC Certificate: CE
Sample: Yes(in Charge) Feature: Adjustable
High Light:

50ft Central Air Conditioner

,

Modular Central Air Conditioner

,

Adjustable Central Air Conditioning Unit

Product Description

VENTECH(Vcare) Air Conditioning Unit Central Air Conditioner Modular air handing unit

Tech Airflow
(m3/h)		 Cooling coil Vapor coil
Return air condition capacity(kW) Fresh air condition capacity kW) Return ar heating(kW)
Model 2-row 4-row 6-row 8-row 2-row 4-row 6-raw 8-raw 1-row 2-raw
VAH001 1000 3.8 6.2 7.9 8.8 7.7 12.6 16.4 18.4 11.4 21.2
VAH002 2000 7.3 12.0 15.3 17.1 15.6 25.6 33.3 37.4 22.9 42.8
VAH003 3000 11.6 19.0 24.2 27.0 23.2 38.1 49.6 47.7 34.4 64.3
VAH004 4000 14.1 23.1 29.5 32.9 31.3 51 4 66.9 75.1 45.1 84.2
VAH005 5000 17.7 29.0 37.0 41.3 39.3 64.5 84.0 94.3 56.4 104.4
VAH006 6000 21.7 35, 45.3 50.6 43.3 71.1 98.6 104.0 87.6 126.5
VAH007 7000 26.3 43.1 55.0 61.4 53.6 88.0 114.6 128.7 78.8 147.5
VAH008 8000 31.1 50.9 64.9 72.4 63.2 103.7 135.0 151 6 90.0 168.4
VAH009 9000 34.5 56.5 72.0 80.3 69.9 114.7 149.3 167.7 101.2 189.4
VAH010 10000 37.6 61.6 78.5 87.6 80.1 131.4 171.1 192.1 112.4 210.4
VAH012 12000 45.4 74.4 94.9 105.9 93.2 152.9 189.1 223.6 134.8 252.3
VAH014 14000 53.1 87.0 110.9 123.8 110.9 182.0 237.0 266.2 157.2 294.2
VAH016 16000 61.8 101.2 129.0 144.0 129.7 212S 277.1 311.2 179.6 336.2
VAH018 18000 70.7 115.8 147.6 164.7 148.1 243.0 316.4 355.3 202.0 378.1
VAH020 20000 80.4 131.7 167.9 187.4 164.3 269.6 351.0 394.2 225.6 421.2
VAH022 22000 84.1 137.8 176.7 196.1 170.4 279.6 364.0 408.8 252.3 467.5
VAH024 24000 92.3 151.2 192.8 215.2 194.5 319.2 415.6 466.7 266.3 500.9
VAH026 26000 100.1 164.0 200.1 233.3 210.2 344.9 449.0 504.2 293.3 547.6
VAH028 28000 107.8 178.6 225.2 251.3 220.3 361.5 470.7 S28.6 310.6 564.4
VAH030 30000 117.0 191.6 244.3 272.6 239.7 303.3 512.1 575.1 332.7 822.8
VAH035 36000 136.3 223.3 284.7 317.7 268.2 440.1 573.0 643.5 388.1 726S
VAH040 40000 156.1 256.7 326.0 363.8 307.5 504.6 657.0 737.3 443.5 830.2
VAH045 45000 169.2 277.2 363.4 394.4 364.4 581.6 757.2 850.3 498.9 933.9
VAH050 50000 181.8 297.8 379.7 423.7 393.3 645.4 840.3 943.7 564.3 1037.6
VAH055 55000 203.4 333.2 424.8 474.1 436.7 716.6 933.0 1047.8 609.7 1141.3
VAH060 60000 226.8 371.5 473.7 528.6 481.6 790.3 1029.0 1156.6 665.1 1245.0
VAH070 70000 266,7 436.9 667.0 621.6 548.2 899.6 1171.3 1315.4 775.9 1452.4
VAH080 80000 307.2 503.2 641.6 716.0 636.6 1044.7 1380.2 1527.5 886.7 1659.9
VAH090 90000 345.7 566.3 722.0 805.8 714.5 1172.5 1526.6 1714.4 997.5 1867.3
VAH100 100000 384 1 629.2 802.2 895.3 786.4 1290.5 1680.2 1886.9 1108.3 2074.7
VAH110 110000 398.4 652.6 832.1 928.6 - - - - 1219.1 2282.1
VAH120 120000 41.3 678.8 865.2 985.6 - - - - 1329.9 2489.5
VAH130 130000 452.9 741.9 945.9 1055.6 - - - - 1440.7 2696 9
VAH140 140000 491.8 806.6 1027.1 1146.2 - - - - 1551.5 2904.4
VAH150 150000 523.7 857.8 1083.7 1130.6 - - - - 1662.3 3111.8
VAH160 160000 557.2 912.7 1163.7 1298.7 - - - - 1745.0 3279.3
VAH170 170000 586.3 960.4 1224.5 1366.5 - - - - 1854.0 3484.3
VAH180 180000 616.0 1009.0 1296.5 1435.7 - - - - 1963.1 3689.2
VAH190 190000 647.1 1060.0 1351.5 1508.3 - - - - 2072.1 3894.2
VAH200 200000 678.5 1111.4 1417.0 1581.4 - - - - 2143.6 4061.5
VAH220 220000 736.4 1206.2 1537.9 1716.3 - - - - 2399.3 4609.0
VAH250 2S0000 817.6 1339.2 1707.5 1905.6 - - - - 2879.5 5029.9




*Cold water cooling condition: return air :DB 27℃/WB 19.5℃; fresh air DB35℃/WB28℃;cold water inlet/outlet 7℃/12℃.

*Heat water cooling condition: return air :DB 15℃/fresh air DB 7℃;inlet/outlet water: 60℃/50℃.

*Heating retur air condition: DB 15℃,fresh air:DB 7 ℃/vapor inlet:115℃,pressure:0.2Mpa.



Multiple Split Ductless Air Conditioner

It is like the single split AC in all aspects except that it has one condenser unit driving all the indoor units. Indoor units of different capacities can be used in different rooms as per the cooling requirement.

The condenser unit consumes energy according to the number of indoor units switched ON and their temperature setting.

The multiple split system negates the need for having a separate outdoor unit for every indoor unit. This reduces space requirements and saves on cost.

The ductless multi-split AC system can start from a two-unit (two indoor units) system. Bigger models can support up to five units.

Home users should plan the construction or renovation of their housekeeping into consideration the fixture points and piping requirements if they intend to have a multi-split AC system installed. . Aircon service for these types of aircon is very easy, provided there is enough space in the room to dismantle and clean is.





❤ Want to learn more about Vcare Wholehouse air conditioner,please contact us by email directly.
