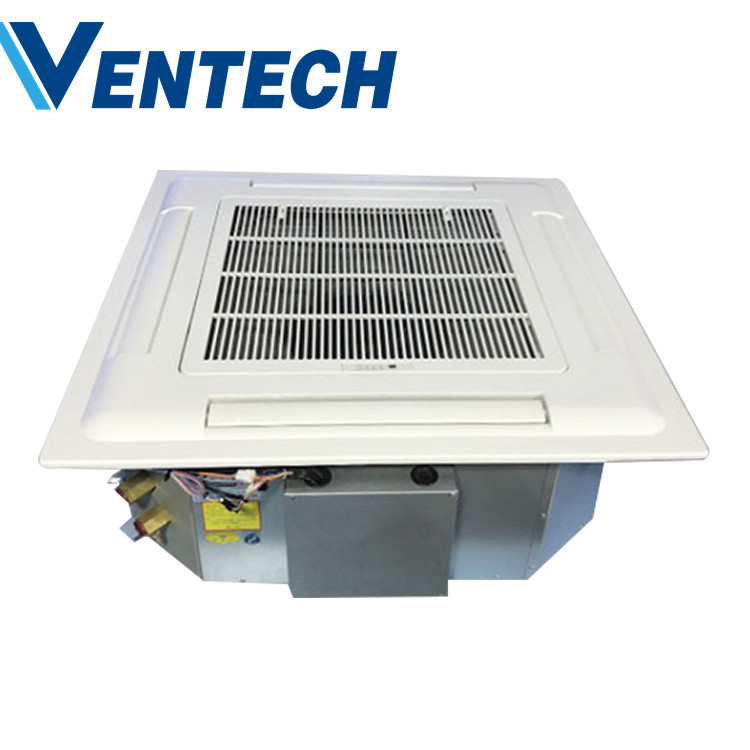

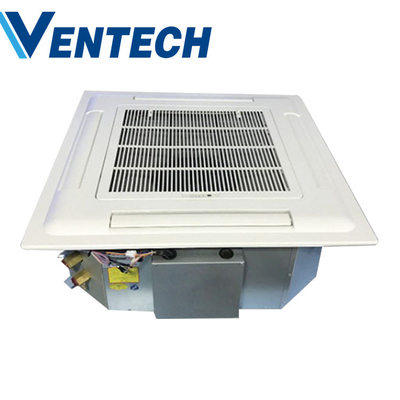

Steel Frame Cassette Type Fan Coil Unit Air And Water Cooled

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Ceiling cassette FCU

Detail Information

Product Name: Ceiling Cassette FCU Certificate: CE
Buiness Type: Manufacturer Cooling/Heating: Both
Size: Customized Operating Voltage: Depends On The Country
Price Term: FOB China Payment Term: TT
High Light:

Steel Cassette Type Fan Coil Unit

,

FCU Cassette Type Fan Coil Unit

Product Description

VENTECH(Vcare) central air conditioner manufacturers Ceiling cassette FCU Fan coil Units HVAC system



FEATURES

  • Available in both air and water cooled
  • Steel frame and covers
  • Long-life semi-hermetic compressor
  • Special refrigeration for extra low temps
  • Brazed copper piping
  • Safety package

We make each of our chillers with our own standard components, and additional elements are available for industry-specific customization. Optional features include outdoor and split systems, fully stainless steel models for food production, deionized water systems, oversized tanks, special pumps, and currents, weatherproofing, and company-approved paint colors. Custom chillers are our specialty, so please call us about integrating your particular requirements.





Model FP200KM4 FP300KM4 FP400KM4 FP500KM4 FP600KM4 FP800KM4 FP1000
KM4-Q
FP1200KM4 FP1400KM4
Air volume Q H m3/h 360 510 680 850 1020 1360 1700 2040 2380
M 250 420 560 650 780 1050 1310 1570 1830
L 200 350 460 520 600 800 1010 1210 1410
Z H m3/h 340 510 680 850 1020 1360 1700 2040 2380
M 280 390 520 650 785 1030 1380 1530 1980
L 230 300 400 500 605 860 1060 1170 1650
Cooling capacity Q H W 2000 2710 3620 4530 5440 7200 9100 10500 12500
M 1700 2410 3100 3830 4485 6000 7050 8560 10500
L 1500 2140 2750 3360 3500 4500 5500 6710 8450
Z H W 1750 2620 3500 4370 5400 7000 8750 10500 12150
M 1410 2250 2920 3645 4440 5890 7340 8800 10130
L 1020 1860 2430 3040 3745 4900 6110 7260 8450
Heating capacity Q H W 3000 4070 5440 6800 8160 10800 13700 16000 18600
M 2810 3520 4650 5750 6700 9350 10600 13700 15260
L 2480 3150 4130 5100 5200 7690 8300 11200 12700
Z H W 2770 4130 5250 6750 8100 10500 13120 15730 17500
M 1990 3010 4370 5460 6450 8750 10940 12530 14580
L 1310 2530 3645 4370 5190 7290 8990 10920 12150
Noise level Q ≤dB(A) ≤dB(A) 37 39 41 43 45 46 48 50 52
Z ≤dB(A) ≤dB(A) 37 39 41 43 45 46 47 50 52
Power source V/Ph/Hz V/Ph/Hz 220-240V/1/50Hz
Motor Q Input W 46 52 70 80 93 130 150 231 268
Z Input W $32 36 36 60 66 90 124 180 225
Heat exchanger Type   Copper pipe with aluminum fins
Q
cooling
Water flow m3/h 0.31 0.48 0.65 0.81 0.98 1.28 1.65 1.99 2.26
WPD kPa 10 18 22 28 37 35 30 35 50
Q
heating
Water flow m3/h 0.31 0.48 0.65 0.81 0.98 1.28 1.65 1.99 2.26
WPD kPa 10 18 22 28 37 35 30 35 50
Z
cooling
Water flow m3/h 0.3 0.46 0.63 0.79 0.96 1 26 1.63 1.97 2.24
WPD kPa 30 30 30 30 40 40 40 40 50
Z
heating
Water flow m3/h 0.3 0. 46 0.63 0.79 0.96 1.26 1.63 1.97 2. 24
WPD kPa 30 30 30 30 40 40 40 40 50
Max working pressure MPa 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
Dimension Q Length mm 650 650 650 850 850 850 1050 1050 1050
Z mm 620 620 790 790 1040 1140 1140 1140 1140
Q Width mm 650 650 650 850 850 850 1050 1050 1050
Z mm 620 620 790 790 790 790 990 990 990
Q Height mm 278 278 318 318 318 318 318 318 318
Z mm 430 430 430 430 430 430 430 430 430
Unit net weight Q kg 26 26 28 34 34 36 50 50 50
Z kg 27 27 32 32 37 39 49 49 49






Want to learn more about Vcare Wholehouse air onditioner,please contact us by email directly.                                                     Email:karen@chinaventech.com Tel:0086 13620119598
