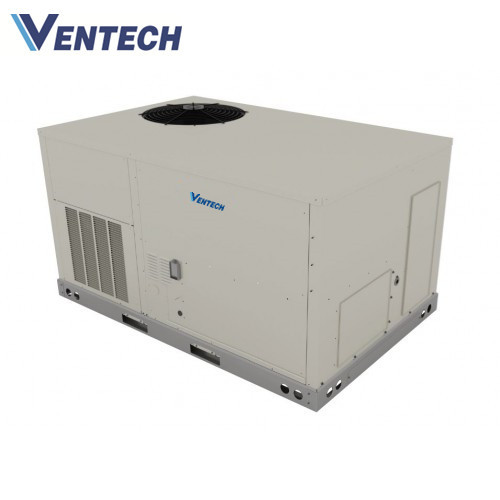

Platform Rooftop Ac Unit Split Type R407c Refrigerant

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Rooftop air conditioning unit

Detail Information

Product Name: Rooftop Air Conditioning Unit Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Field Installation, Commissioning And Training, Online Support Use: Project/Office/Commercial Area
Type: Commericial Air Conditioner Mounting: Floor Standing, Wall / Window Mount, Ceiling Mount, Split, Rooftop Mounted
Operating Voltage: Depends On The Country Busiess Type: Factory
High Light:

Platform Rooftop Ac Unit

,

Split Type Rooftop Ac Unit

,

R407c Rooftop Ac Unit

Product Description

Air conditioning unit central air conditioner platform Rooftop air conditioning unit commericial air conditioner

VENTECH(Vcare) Split type Rooftop Air Conditioning Unit (fresh air)



Our Previous Custom Industrial Chiller Customers

We manufacture custom chillers for a broad spectrum of industrial processes, including food, pharmaceuticals, biotechnology, plastics and rubber, chemicals, metalworking, nuclear science, ceramic manufacturing, vapor recovery, medical, cannabis, and gas and oil. For more information on the industries and companies we've served, please visit our customer page.

If you've dealt with the frustrating task of trying to make a standard industrial chiller work for your advanced applications, VENTECH Refrigeration Technologies can help. To request more information on designing industrial chillers customized to your requirements, please contact us directly.





Cooling,Heat pump, Electrical heating Data



Parameter Cooling capacity Heating capacity Air flow (m3/h) ESP Consumed power (kW) Noise
≤dB(A)
Dimension Weight (Kg)
Model kW kW (Pa) Cooling Heating L(mm) W(mm) H(mm)
VWD-22D 21.5 22.6 4900 150 8 08 15.37 62 2800 1100 1200 510
360 8.52 15.81 61
VWD-30D 29.4 30.9 6000 150 9.85 17.11 63 2800 1100 1200 530
350 10.69 17.88 62
VWD-34D 33.6 35.4 7100 200 13.25 22.58 64 2950 1700 1250 860
400 13.25 22.58 64
VWD-44D 43.5 45.8 9100 200 17.74 29.08 67 2960 1700 1250 960
400 17.74 29.08 66
VWD-52D 51.3 54 10600 200 18.2 29.26 69 2950 1700 1250 1230
400 19.4 30.36 68
VWD-58D 58.1 61.2 11000 200 20.5 35.31 70 3450 1000 1450 1250
400 20.5 35.31 70
VWD-62D 62.3 65.6 12000 200 23.9 39-16 72 3450 1800 1450 1285
500 25 40.26 71
VWD-66D 66.1 69 13000 200 26.06 43 08 73 3450 1800 1450 1310
500 27.71 44.73 72
VWD-69D 68.6 72.2 14000 200 30.73 49.7 76 3450 1800 1450 1400
500 32.93 51.9 75
VWD-88D 87.6 92.1 16000 300 30.2 52 42 76 4775 1800 1700 1735
500 32.4 51.9 76
VWD-1000 99.5 104.8 16800 300 38.54 63.24 77 4775 1800 1700 1820
500 40.74 65.44 77
VWD-1150 114.8 120.9 21000 300 45.92 76.09 78 4650 1800 2230 2265
560 45.92 76 09 77
VWD-1240 123.9 130.5 22000 300 50.39 81 78 4650 1800 2230 2340
560 S4.24 84.45 78
VWD-1330 133.1 140.2 23500 350 54.06 85 04 79 4650 1800 2230 2420
560 57.91 88 89 79
VWD-1450 143 8 161.4 25000 360 62.3 100.32 80 4650 1800 2230 2510
550 62.3 100.32 79
WVD-172D 171.3 180.4 28000 400 68 61 107.26 81 6000 2250 2340 3245
600 73.01 111.66 80
VWD-181D 180.2 189.8 29000 400 73.48 112.61 81 6000 2250 2340 3380
600 77.88 117.01 81
VWD-190D 189.8 199.9 30000 400 81.55 127.65 82 6000 2250 2340 3520
600 81.55 127.65 81
VWD-1990 199.1 209.7 31000 400 85 22 131.69 83 6000 2250 2340 3590
660 85 22 131.69 82



*Evaporator and condenser are using with copper aluminium fin.

*Temperature controlling range is 16-30℃,temperature controlling accuracy is ± 2℃

*Electrical heating is finned type stainless steel electrical heating.

*Power consumpting includes the summation of heat pump heating and auxillary electric heating.

*Connecting type of cooper is soldering.

*The type of power is 380V/3N-50Hz.

*Refrigerant: R22.If the refrigerant is R407c.the parameter is ditto.



Want to learn more about Vcare Wholehouse air conditioner,please contact us by email directly.
