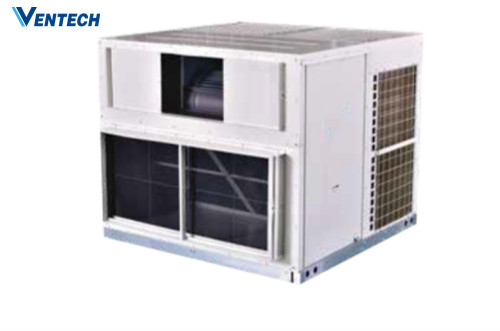

6000m3/H Commercial Central Air Conditioner R22 Refrigerant

Minimum Order Quantity :	1 unit	Price :	1000USD-5000USD/unit
Packaging Details :	standard pallet packing	Delivery Time :	30-60days
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	50 Containers Per Month

Place of Origin:	CHINA	Brand Name:	VENTECH
Certification:	CE	Model Number:	Rooftop air conditioning unit

Detail Information
Product Name:	Rooftop Air Conditioning Unit	Condition:	30 Days After Receiving Prepayment
Type:	Commericial Air Conditioner	Use:	Project/Office/Commercial Area
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Field Installation, Commissioning And Training, Online Support	Mounting:	Floor Standing, Wall / Window Mount, Ceiling Mount, Split, Rooftop Mounted
Operating Voltage:	Depends On The Country	Busiess Type:	Factory
High Light:	6000m3/H Commercial Central Air Conditioner , R22 Refrigerant Commercial Central Air Conditioner , Office Commercial Central Ac

Product Description

Air conditioning unit central air conditioner pad Rooftop air conditioning unit commericial air conditioner

VENTECH(Vcare) Split type Rooftop Air Conditioning Unit (fresh air)

Our Experience Building Custom Industrial Chillers

In addition to the decades of experience we have as a company, our team of professionals offers extensive knowledge and skillsets in assisting our customers with their industrial cooling needs. As part of our simple, customer-centered philosophy, it is our goal to help each one find and customize the right industrial chiller for their specific application and offer competitive pricing on each finished product. Having designed custom-built chillers for a diverse range of industries and highly specialized processes, we can help you find the right chiller at the right price.

Cooling,Heat pump, Electrical heating Data

Parameter	Cooling capacity	Heating capacity	Air flow (m3/h)	ESP	Consumed power (kW)		Noise ≤dB(A)	Dimension			Weight (Kg)
Model	kW	kW		(Pa)	Cooling	Heating		L(mm)	W(mm)	H(mm)
VWD-22D	21.5	22.6	4900	150	8 08	15.37	62	2800	1100	1200	510
				360	8.52	15.81	61
VWD-30D	29.4	30.9	6000	150	9.85	17.11	63	2800	1100	1200	530
				350	10.69	17.88	62
VWD-34D	33.6	35.4	7100	200	13.25	22.58	64	2950	1700	1250	860
				400	13.25	22.58	64
VWD-44D	43.5	45.8	9100	200	17.74	29.08	67	2960	1700	1250	960
				400	17.74	29.08	66
VWD-52D	51.3	54	10600	200	18.2	29.26	69	2950	1700	1250	1230
				400	19.4	30.36	68
VWD-58D	58.1	61.2	11000	200	20.5	35.31	70	3450	1000	1450	1250
				400	20.5	35.31	70
VWD-62D	62.3	65.6	12000	200	23.9	39-16	72	3450	1800	1450	1285
				500	25	40.26	71
VWD-66D	66.1	69	13000	200	26.06	43 08	73	3450	1800	1450	1310
				500	27.71	44.73	72
VWD-69D	68.6	72.2	14000	200	30.73	49.7	76	3450	1800	1450	1400
				500	32.93	51.9	75
VWD-88D	87.6	92.1	16000	300	30.2	52 42	76	4775	1800	1700	1735
				500	32.4	51.9	76
VWD-1000	99.5	104.8	16800	300	38.54	63.24	77	4775	1800	1700	1820
				500	40.74	65.44	77
VWD-1150	114.8	120.9	21000	300	45.92	76.09	78	4650	1800	2230	2265
				560	45.92	76 09	77
VWD-1240	123.9	130.5	22000	300	50.39	81	78	4650	1800	2230	2340
				560	S4.24	84.45	78
VWD-1330	133.1	140.2	23500	350	54.06	85 04	79	4650	1800	2230	2420
				560	57.91	88 89	79
VWD-1450	143 8	161.4	25000	360	62.3	100.32	80	4650	1800	2230	2510
				550	62.3	100.32	79
WVD-172D	171.3	180.4	28000	400	68 61	107.26	81	6000	2250	2340	3245
				600	73.01	111.66	80
VWD-181D	180.2	189.8	29000	400	73.48	112.61	81	6000	2250	2340	3380
				600	77.88	117.01	81
VWD-190D	189.8	199.9	30000	400	81.55	127.65	82	6000	2250	2340	3520
				600	81.55	127.65	81
VWD-1990	199.1	209.7	31000	400	85 22	131.69	83	6000	2250	2340	3590
				660	85 22	131.69	82

*Evaporator and condenser are using with copper aluminium fin.

*Temperature controlling range is 16-30℃,temperature controlling accuracy is ± 2℃

*Electrical heating is finned type stainless steel electrical heating.

*Power consumpting includes the summation of heat pump heating and auxillary electric heating.

*Connecting type of cooper is soldering.

*The type of power is 380V/3N-50Hz.

*Refrigerant: R22.If the refrigerant is R407c.the parameter is ditto.

❤ Want to learn more about Vcare Wholehouse air conditioner,please contact us by email directly.

Email:karen@chinaventech.com

Tel:0086 13620119598
