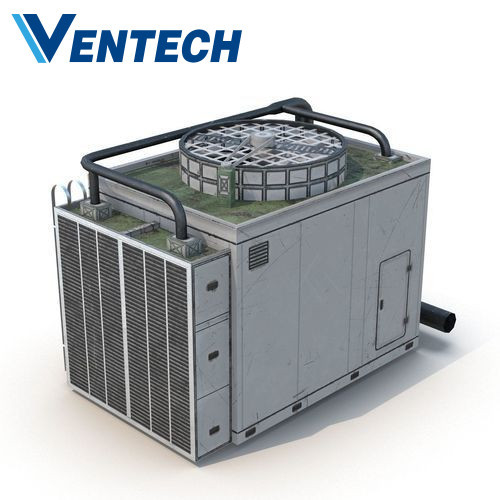

R407c Rooftop Air Conditioner Stainless Steel Electrical Heating

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Rooftop air conditioning unit

Detail Information

Product Name: Rooftop Air Conditioning Unit Package: Pallet Packing
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Field Installation, Commissioning And Training, Online Support
Use: Project/Office/Commercial Area Operating Voltage: Depends On The Country
Type: Commericial Air Conditioner
High Light:

R407c Rooftop Air Conditioner

,

Stainless Steel Rooftop Air Conditioner

,

Electrical Heating Rooftop Air Conditioner

Product Description

Air conditioning unit central air conditioner system Rooftop air conditioning unit commericial air conditioner

VENTECH(Vcare) Split type Rooftop Air Conditioning Unit (fresh air)



It’s not practical for Consumer Reports to test central air conditioning systems because there are so many variables, including a home’s size and design, how the system is installed, and construction of the ductwork.

Instead, we ask our members about the systems they own. In our most recent central air conditioning survey, we talked to our members about the almost 24,000 new central AC systems they bought and installed between 2005 and 2020. We learned how satisfied they were overall with their purchase, the cost of repairs, how many systems break, and which parts break most often.

Of the central AC systems covered in our survey, we predict that 36 percent will break or experience problems by the end of the eighth year of ownership. Find out the details from our reliability survey, and learn about the types of central air conditioning systems available and how to choose and maintain them. Plus, learn how to find a good contractor to do the work



Cooling,Heat pump, Electrical heating Data



Parameter Cooling capacity Heating capacity Air flow (m3/h) ESP Consumed power (kW) Noise
≤dB(A)
Dimension Weight (Kg)
Model kW kW (Pa) Cooling Heating L(mm) W(mm) H(mm)
VWD-22D 21.5 22.6 4900 150 8 08 15.37 62 2800 1100 1200 510
360 8.52 15.81 61
VWD-30D 29.4 30.9 6000 150 9.85 17.11 63 2800 1100 1200 530
350 10.69 17.88 62
VWD-34D 33.6 35.4 7100 200 13.25 22.58 64 2950 1700 1250 860
400 13.25 22.58 64
VWD-44D 43.5 45.8 9100 200 17.74 29.08 67 2960 1700 1250 960
400 17.74 29.08 66
VWD-52D 51.3 54 10600 200 18.2 29.26 69 2950 1700 1250 1230
400 19.4 30.36 68
VWD-58D 58.1 61.2 11000 200 20.5 35.31 70 3450 1000 1450 1250
400 20.5 35.31 70
VWD-62D 62.3 65.6 12000 200 23.9 39-16 72 3450 1800 1450 1285
500 25 40.26 71
VWD-66D 66.1 69 13000 200 26.06 43 08 73 3450 1800 1450 1310
500 27.71 44.73 72
VWD-69D 68.6 72.2 14000 200 30.73 49.7 76 3450 1800 1450 1400
500 32.93 51.9 75
VWD-88D 87.6 92.1 16000 300 30.2 52 42 76 4775 1800 1700 1735
500 32.4 51.9 76
VWD-1000 99.5 104.8 16800 300 38.54 63.24 77 4775 1800 1700 1820
500 40.74 65.44 77
VWD-1150 114.8 120.9 21000 300 45.92 76.09 78 4650 1800 2230 2265
560 45.92 76 09 77
VWD-1240 123.9 130.5 22000 300 50.39 81 78 4650 1800 2230 2340
560 S4.24 84.45 78
VWD-1330 133.1 140.2 23500 350 54.06 85 04 79 4650 1800 2230 2420
560 57.91 88 89 79
VWD-1450 143 8 161.4 25000 360 62.3 100.32 80 4650 1800 2230 2510
550 62.3 100.32 79
WVD-172D 171.3 180.4 28000 400 68 61 107.26 81 6000 2250 2340 3245
600 73.01 111.66 80
VWD-181D 180.2 189.8 29000 400 73.48 112.61 81 6000 2250 2340 3380
600 77.88 117.01 81
VWD-190D 189.8 199.9 30000 400 81.55 127.65 82 6000 2250 2340 3520
600 81.55 127.65 81
VWD-1990 199.1 209.7 31000 400 85 22 131.69 83 6000 2250 2340 3590
660 85 22 131.69 82



*Evaporator and condenser are using with copper aluminium fin.

*Temperature controlling range is 16-30℃,temperature controlling accuracy is ± 2℃

*Electrical heating is finned type stainless steel electrical heating.

*Power consumpting includes the summation of heat pump heating and auxillary electric heating.

*Connecting type of cooper is soldering.

*The type of power is 380V/3N-50Hz.

*Refrigerant: R22.If the refrigerant is R407c.the parameter is ditto.





Want to learn more about Vcare Wholehouse air onditioner,please contact us by email directly.                                                     Email:karen@chinaventech.com Tel:0086 13620119598
