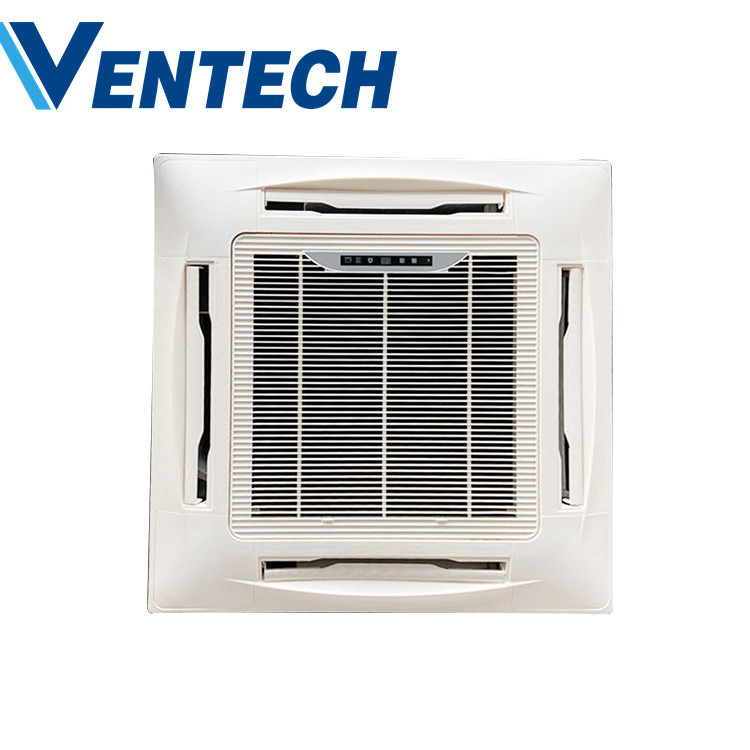

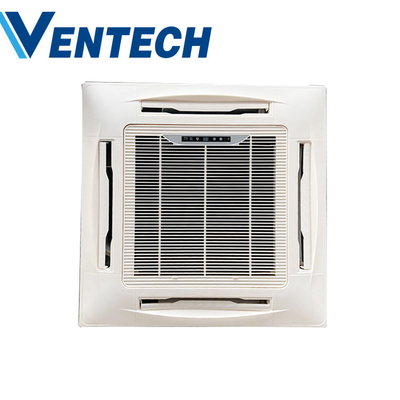

OEM Ceiling Cassette FCU For Central Air Conditioner Or Heat Pump

Minimum Order Quantity :	1 unit	Price :	1000USD-5000USD/unit
Packaging Details :	standard pallet packing	Delivery Time :	30-60days
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	50 Containers Per Month

Place of Origin:	CHINA	Brand Name:	VENTECH
Certification:	CE	Model Number:	Ceiling cassette FCU

Detail Information
Product Name:	Ceiling Cassette FCU	Package:	Pallet Packing
Trade Mark:	VENTECH/VCARE/OEM	Business Type:	Manufacturer
Power:	Depends On The Country	Operating Voltage:	Depends On The Country
Type:	Central Air Conditioner	Condition:	New
High Light:	OEM Ceiling Cassette FCU , Heat Pump Ceiling Cassette FCU

Product Description

VENTECH(Vcare) central air conditioner or heat pump Ceiling cassette FCU Fan coil Units HVAC system

Upgrading an existing system
If you’re upgrading your central air, don’t assume you should buy the same-sized system. Any changes you’ve made to improve your home’s energy efficiency, such as upgrading your windows or adding insulation, can reduce your cooling needs. On the other hand, if you’ve added rooms, you might need more cooling.

Have your contractor do a load calculation based on a recognized method, such as one in Manual J from the ACCA. The contractor’s evaluation should include whether your ducts need to be resized, sealed, and insulated, or replaced. Remember that an indoor evaporator coil and outdoor condenser must be a matched set from the same brand, or the performance, efficiency, and capacity might not meet expectations.

New systems are 20 to 40 percent more efficient than minimum-efficiency models made even 10 years ago. Costs will vary and can depend on whether you need ductwork installed, and the particular size and configuration of your home.

Air conditioning requirements across the world are increasing at a significant rate. An increase in temperature, heatwaves, and unpredictable weather is one driver for the high demand. An increase in energy efficiency and affordability is the primary demand driver. Individual requirements vary extensively, and manufacturers are innovating rapidly.

To cater to the varied requirements of home-owners, the manufacturers have made available a wide variety of air conditioners.

Model				FP200KM4	FP300KM4	FP400KM4	FP500KM4	FP600KM4	FP800KM4	FP1000 KM4-Q	FP1200KM4	FP1400KM4
Air volume	Q	H	m3/h	360	510	680	850	1020	1360	1700	2040	2380
		M		250	420	560	650	780	1050	1310	1570	1830
		L		200	350	460	520	600	800	1010	1210	1410
	Z	H	m3/h	340	510	680	850	1020	1360	1700	2040	2380
		M		280	390	520	650	785	1030	1380	1530	1980
		L		230	300	400	500	605	860	1060	1170	1650
Cooling capacity	Q	H	W	2000	2710	3620	4530	5440	7200	9100	10500	12500
		M		1700	2410	3100	3830	4485	6000	7050	8560	10500
		L		1500	2140	2750	3360	3500	4500	5500	6710	8450
	Z	H	W	1750	2620	3500	4370	5400	7000	8750	10500	12150
		M		1410	2250	2920	3645	4440	5890	7340	8800	10130
		L		1020	1860	2430	3040	3745	4900	6110	7260	8450
Heating capacity	Q	H	W	3000	4070	5440	6800	8160	10800	13700	16000	18600
		M		2810	3520	4650	5750	6700	9350	10600	13700	15260
		L		2480	3150	4130	5100	5200	7690	8300	11200	12700
	Z	H	W	2770	4130	5250	6750	8100	10500	13120	15730	17500
		M		1990	3010	4370	5460	6450	8750	10940	12530	14580
		L		1310	2530	3645	4370	5190	7290	8990	10920	12150
Noise level	Q	≤dB(A)	≤dB(A)	37	39	41	43	45	46	48	50	52
Noise level	Z	≤dB(A)	≤dB(A)	37	39	41	43	45	46	47	50	52
Power source		V/Ph/Hz	V/Ph/Hz	220-240V/1/50Hz
Motor	Q	Input	W	46	52	70	80	93	130	150	231	268
Motor	Z	Input	W	$32	36	36	60	66	90	124	180	225
Heat exchanger	Type			Copper pipe with aluminum fins
	Q cooling	Water flow	m3/h	0.31	0.48	0.65	0.81	0.98	1.28	1.65	1.99	2.26
	Q cooling	WPD	kPa	10	18	22	28	37	35	30	35	50
	Q heating	Water flow	m3/h	0.31	0.48	0.65	0.81	0.98	1.28	1.65	1.99	2.26
	Q heating	WPD	kPa	10	18	22	28	37	35	30	35	50
	Z cooling	Water flow	m3/h	0.3	0.46	0.63	0.79	0.96	1 26	1.63	1.97	2.24
	Z cooling	WPD	kPa	30	30	30	30	40	40	40	40	50
	Z heating	Water flow	m3/h	0.3	0. 46	0.63	0.79	0.96	1.26	1.63	1.97	2. 24
	Z heating	WPD	kPa	30	30	30	30	40	40	40	40	50
Max working pressure			MPa	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Dimension	Q	Length	mm	650	650	650	850	850	850	1050	1050	1050
	Z	Length	mm	620	620	790	790	1040	1140	1140	1140	1140
	Q	Width	mm	650	650	650	850	850	850	1050	1050	1050
	Z	Width	mm	620	620	790	790	790	790	990	990	990
	Q	Height	mm	278	278	318	318	318	318	318	318	318
	Z	Height	mm	430	430	430	430	430	430	430	430	430
Unit net weight	Q		kg	26	26	28	34	34	36	50	50	50
Unit net weight	Z		kg	27	27	32	32	37	39	49	49	49

❤ Want to learn more about Vcare Wholehouse air onditioner,please contact us by email directly. Email:karen@chinaventech.com Tel:0086 13620119598
