Air Flow 12000m3/H 6 Ton Central Air Unit Dual Refrigeration System

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Rooftop air conditioning unit

Detail Information

Product Name: Rooftop Air Conditioning Unit Price Term: FOB
Certificate: CE Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Field Installation, Commissioning And Training, Online Support Mounting: Floor Standing, Wall / Window Mount, Ceiling Mount, Split, Rooftop Mounted
Sample: Yes Busiess Type: Factory
High Light:

6 Ton Central Air Unit

,

12000m3/H 6 Ton Central Air Unit

,

Dual Refrigeration Rooftop Air Conditioning Unit

Product Description

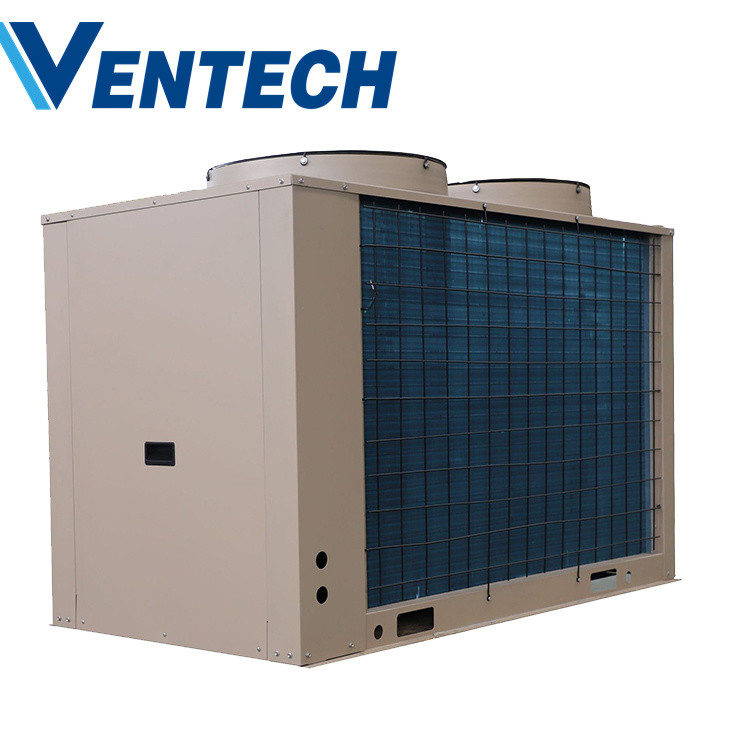

Close control ac 6 ton central air unit Rooftop air conditioning unit server room air conditioner

VENTECH(Vcare) Rooftop air conditioning unit Central air conditioner



Cooling,Heat pump, Electrical heating



Parameter Cooling capacity Heating capacity Auxillary electrical
heating capacity
Air flow (m3/h) ESP
(Pa)
Consumed power(kw) Noise dB(A)
Model kW kW kW Cooling Heating
VWD-33XF 32.3 28.3 16 2800 150 9.09 22.9 61
350 9.09 22.9 61.6
WO-38XF 38.3 34.4 18 3300 150 11.98 27.95 64
350 12.38 28.35 64.5
VW-S0XF 49.5 42.3 24 4300 200 15.16 37.04 67.5
350 15.16 37.04 68
VWD-67XF 66.9 59.7 33 5800 200 20.9 50.41 70
350 20.9 50.41 70.5
VWD-78XF 77.5 68.8 39 6700 200 23.26 58.2 72.5
400 23.96 58.9 73
VWD-98XF 98 89.6 48 8400 200 30.25 73.02 76
400 31.05 73.82 76.5
VWD-134XF 133.8 115.8 69 12000 250 40.4 103.7 77.5
450 42.9 106.2 78
VW-155XF 155.1 138.6 80 14000 300 47.52 122.2 79
500 49.02 123.7 79.5
WO-201XF 200.7 173.7 102 18000 350 61.6 155.02 80.5
550 63.6 157.02 81
VWD-233XF 232.6 207.9 114 20000 350 72.78 178.8 82.5
550 76.28 182.3 83

*Temperature controlling range is 16-30℃,temperature controlling accuracy is ± 2℃
*Evaporator and condenser are using with copper aluminium fin.

*Electrical heating is finned type stainless steel electrical heating.

*Power consumpting includes the summation of heat pump heating and auxillary electric heating.

*Connecting type of cooper is soldering.

*The type of power is 380V/3N-50Hz.

*Refrigerant: R22.If the refrigerant is R407c.the parameter is ditto.



  • Unique Configurations - If your application requires a physical configuration that is different, VENTECH can accommodate individual needs. The cover photo shows a special workstation arrangement required by a machine tool manufacturer for cooling a high-speed spindle. Other unique configurations include designs to fit inside the customer's system.
  • Special Controls - Chiller units can be controlled in unique ways. Remote sensors can monitor process parameters and control the cooling to make the process operate in the optimum manner. Remote controls allow placement of chillers in distant locations, whereas the controls can remain in a more convenient place.
  • Special Electrical Specifications - Explosion-proof electrics are necessary for situations where the chiller must operate in hazardous atmospheres. Where hazardous conditions always exist, special electricals are mandated. When the hazardous conditions do not always exist , purged or pressurized electrical enclosures offer the required safety at reasonable cost. Unusual electrical specification can include uncommon voltages, sealed systems for
  • Special Pumps - Self-priming pumps or pumps of unusual metallurgy can be specified; or pumps can be fitted with special motors or impellers to provide high pressure or high flow.
  • Special Temperatures - Virtually any temperature range that you can envision can be accommodated.
  • Dual Refrigeration Systems - Two complete refrigeration systems (dual compressors) can be fitted for those applications with widely varying loads or where redundancy (back-up) is important.
  • Standard Options - More easily produced than a custom chiller, a standard VENTCH chiller can incorporate any of the following options at modest cost: Special paints and colors. Outdoor installation packages Special temperature controllers, digital or analog Special instrumentation. Mounting clips or casters. Remote switching. Large/small tanks. No tank - arranged for once-through cooling. Additional safety switches: low flow, low temperature, high temperature, low water pressure, etc.
  • A wide range of capacities in custom-designed chillers for specialized cooling
  • Air and Water Condensing Models
  • Special Options on Standard Models
  • Models with Modified Systems, Special Components or Controls
  • Total Custom Engineering
