indoor / Outdoor Split Ductless AC 50ft Length

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Modular air handing unit

Detail Information
Product Name: Modular Air Handing Unit Working Pressure: Different Working Pressure
Retun Air: DB 27℃/WB 19.5℃ Length: MAX:50ft
Quality: Superior Certificate: CE
Sample: Yes(in Charge) Busiess Type: Factory
High Light:

Outdoor Split Ductless AC

,

indoor Split Ductless AC

,

50ft Length Split Ductless AC

Product Description

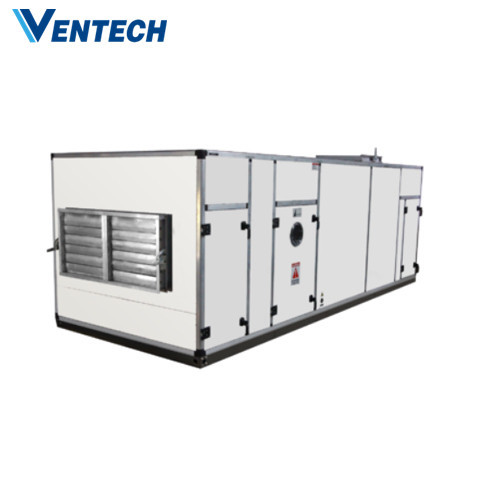

VENTECH(Vcare) Air Conditioning Unit Central Air Conditioner Modular air handing unit

Tech Airflow
(m3/h)		 Cooling coil Vapor coil
Return air condition capacity(kW) Fresh air condition capacity kW) Return ar heating(kW)
Model 2-row 4-row 6-row 8-row 2-row 4-row 6-raw 8-raw 1-row 2-raw
VAH001 1000 3.8 6.2 7.9 8.8 7.7 12.6 16.4 18.4 11.4 21.2
VAH002 2000 7.3 12.0 15.3 17.1 15.6 25.6 33.3 37.4 22.9 42.8
VAH003 3000 11.6 19.0 24.2 27.0 23.2 38.1 49.6 47.7 34.4 64.3
VAH004 4000 14.1 23.1 29.5 32.9 31.3 51 4 66.9 75.1 45.1 84.2
VAH005 5000 17.7 29.0 37.0 41.3 39.3 64.5 84.0 94.3 56.4 104.4
VAH006 6000 21.7 35, 45.3 50.6 43.3 71.1 98.6 104.0 87.6 126.5
VAH007 7000 26.3 43.1 55.0 61.4 53.6 88.0 114.6 128.7 78.8 147.5
VAH008 8000 31.1 50.9 64.9 72.4 63.2 103.7 135.0 151 6 90.0 168.4
VAH009 9000 34.5 56.5 72.0 80.3 69.9 114.7 149.3 167.7 101.2 189.4
VAH010 10000 37.6 61.6 78.5 87.6 80.1 131.4 171.1 192.1 112.4 210.4
VAH012 12000 45.4 74.4 94.9 105.9 93.2 152.9 189.1 223.6 134.8 252.3
VAH014 14000 53.1 87.0 110.9 123.8 110.9 182.0 237.0 266.2 157.2 294.2
VAH016 16000 61.8 101.2 129.0 144.0 129.7 212S 277.1 311.2 179.6 336.2
VAH018 18000 70.7 115.8 147.6 164.7 148.1 243.0 316.4 355.3 202.0 378.1
VAH020 20000 80.4 131.7 167.9 187.4 164.3 269.6 351.0 394.2 225.6 421.2
VAH022 22000 84.1 137.8 176.7 196.1 170.4 279.6 364.0 408.8 252.3 467.5
VAH024 24000 92.3 151.2 192.8 215.2 194.5 319.2 415.6 466.7 266.3 500.9
VAH026 26000 100.1 164.0 200.1 233.3 210.2 344.9 449.0 504.2 293.3 547.6
VAH028 28000 107.8 178.6 225.2 251.3 220.3 361.5 470.7 S28.6 310.6 564.4
VAH030 30000 117.0 191.6 244.3 272.6 239.7 303.3 512.1 575.1 332.7 822.8
VAH035 36000 136.3 223.3 284.7 317.7 268.2 440.1 573.0 643.5 388.1 726S
VAH040 40000 156.1 256.7 326.0 363.8 307.5 504.6 657.0 737.3 443.5 830.2
VAH045 45000 169.2 277.2 363.4 394.4 364.4 581.6 757.2 850.3 498.9 933.9
VAH050 50000 181.8 297.8 379.7 423.7 393.3 645.4 840.3 943.7 564.3 1037.6
VAH055 55000 203.4 333.2 424.8 474.1 436.7 716.6 933.0 1047.8 609.7 1141.3
VAH060 60000 226.8 371.5 473.7 528.6 481.6 790.3 1029.0 1156.6 665.1 1245.0
VAH070 70000 266,7 436.9 667.0 621.6 548.2 899.6 1171.3 1315.4 775.9 1452.4
VAH080 80000 307.2 503.2 641.6 716.0 636.6 1044.7 1380.2 1527.5 886.7 1659.9
VAH090 90000 345.7 566.3 722.0 805.8 714.5 1172.5 1526.6 1714.4 997.5 1867.3
VAH100 100000 384 1 629.2 802.2 895.3 786.4 1290.5 1680.2 1886.9 1108.3 2074.7
VAH110 110000 398.4 652.6 832.1 928.6 - - - - 1219.1 2282.1
VAH120 120000 41.3 678.8 865.2 985.6 - - - - 1329.9 2489.5
VAH130 130000 452.9 741.9 945.9 1055.6 - - - - 1440.7 2696 9
VAH140 140000 491.8 806.6 1027.1 1146.2 - - - - 1551.5 2904.4
VAH150 150000 523.7 857.8 1083.7 1130.6 - - - - 1662.3 3111.8
VAH160 160000 557.2 912.7 1163.7 1298.7 - - - - 1745.0 3279.3
VAH170 170000 586.3 960.4 1224.5 1366.5 - - - - 1854.0 3484.3
VAH180 180000 616.0 1009.0 1296.5 1435.7 - - - - 1963.1 3689.2
VAH190 190000 647.1 1060.0 1351.5 1508.3 - - - - 2072.1 3894.2
VAH200 200000 678.5 1111.4 1417.0 1581.4 - - - - 2143.6 4061.5
VAH220 220000 736.4 1206.2 1537.9 1716.3 - - - - 2399.3 4609.0
VAH250 2S0000 817.6 1339.2 1707.5 1905.6 - - - - 2879.5 5029.9




*Cold water cooling condition: return air :DB 27℃/WB 19.5℃; fresh air DB35℃/WB28℃;cold water inlet/outlet 7℃/12℃.

*Heat water cooling condition: return air :DB 15℃/fresh air DB 7℃;inlet/outlet water: 60℃/50℃.

*Heating retur air condition: DB 15℃,fresh air:DB 7 ℃/vapor inlet:115℃,pressure:0.2Mpa.





Single Split Ductless Air Conditioner

The split ductless AC is the most popular variant opted by households. The AC is “split” into two components – the indoor unit and outdoor unit.

The outdoor unit (ODU) is the condenser unit that contains the compressor and a heat exchanging coil. It is mounted outside the house premises. The outdoor unit needs to be in the open air to function correctly. It can be installed on the wall or attached to the ground.

The indoor unit (IDU) has a coil that cools down and extracts heat from your room. The indoor unit is wall-mounted at the height of at least 8-9 feet from the floor. This ensures that it does not consume usage space in your room.

The indoor and outdoor units are connected through pipes that carry the refrigerant. The installation comprises mounting the indoor and outdoor units and connecting the pipes. Once the technicians confirm that the units have been installed correctly, they fill refrigerant in the system.

Manufacturers provide a long list of features – horizontal and vertical swing, sleep tracking, automatic temperature adjustment (often called comfort mode), mosquito repellant system, air filtering systems, and many more. Today’s smart split AC comes with built-in Wi-Fi and can be controlled using a mobile phone or a smart assistant like Alexa or Google Home.

Heat-Pump: There are split units that have both cooling and heating facility. Since the AC is a heat pump, if the flow is reversed, the indoor unit acts as a heater. Such dual-purpose units serve well in areas that have extreme temperatures throughout the year. . Aircon service for these types of aircon is moderatly easy, provided there is access to the compressor unit.





❤ Want to learn more about Vcare Wholehouse air conditioner,please contact us by email directly.

Email:karen@chinaventech.com

Tel:0086 13620119598
