596.4kw 3 Ton Floor Standing Split Air Conditioner

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Modular air handing unit

Detail Information
Product Name: Modular Air Handing Unit Model: Modular Air Handing Unit
Retun Air: DB 27℃/WB 19.5℃ Working Pressure: Different Working Pressure
Feature: Adjustable Cooling Capacity: 21.5~576.7kw
Heating Capacity: 22.6~596.4kw Trade Mark: VENTECH
High Light:

Floor Standing Split Air Conditioner

,

3 Ton Split Air Conditioner

,

596.4kw Central Air Conditioning Unit

Product Description

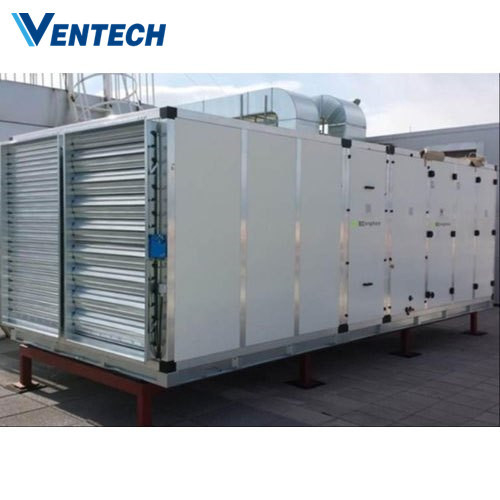

VENTECH(Vcare) Air Conditioning Unit Central Air Conditioner Modular air handing unit

Tech Airflow
(m3/h)		 Cooling coil Vapor coil
Return air condition capacity(kW) Fresh air condition capacity kW) Return ar heating(kW)
Model 2-row 4-row 6-row 8-row 2-row 4-row 6-raw 8-raw 1-row 2-raw
VAH001 1000 3.8 6.2 7.9 8.8 7.7 12.6 16.4 18.4 11.4 21.2
VAH002 2000 7.3 12.0 15.3 17.1 15.6 25.6 33.3 37.4 22.9 42.8
VAH003 3000 11.6 19.0 24.2 27.0 23.2 38.1 49.6 47.7 34.4 64.3
VAH004 4000 14.1 23.1 29.5 32.9 31.3 51 4 66.9 75.1 45.1 84.2
VAH005 5000 17.7 29.0 37.0 41.3 39.3 64.5 84.0 94.3 56.4 104.4
VAH006 6000 21.7 35, 45.3 50.6 43.3 71.1 98.6 104.0 87.6 126.5
VAH007 7000 26.3 43.1 55.0 61.4 53.6 88.0 114.6 128.7 78.8 147.5
VAH008 8000 31.1 50.9 64.9 72.4 63.2 103.7 135.0 151 6 90.0 168.4
VAH009 9000 34.5 56.5 72.0 80.3 69.9 114.7 149.3 167.7 101.2 189.4
VAH010 10000 37.6 61.6 78.5 87.6 80.1 131.4 171.1 192.1 112.4 210.4
VAH012 12000 45.4 74.4 94.9 105.9 93.2 152.9 189.1 223.6 134.8 252.3
VAH014 14000 53.1 87.0 110.9 123.8 110.9 182.0 237.0 266.2 157.2 294.2
VAH016 16000 61.8 101.2 129.0 144.0 129.7 212S 277.1 311.2 179.6 336.2
VAH018 18000 70.7 115.8 147.6 164.7 148.1 243.0 316.4 355.3 202.0 378.1
VAH020 20000 80.4 131.7 167.9 187.4 164.3 269.6 351.0 394.2 225.6 421.2
VAH022 22000 84.1 137.8 176.7 196.1 170.4 279.6 364.0 408.8 252.3 467.5
VAH024 24000 92.3 151.2 192.8 215.2 194.5 319.2 415.6 466.7 266.3 500.9
VAH026 26000 100.1 164.0 200.1 233.3 210.2 344.9 449.0 504.2 293.3 547.6
VAH028 28000 107.8 178.6 225.2 251.3 220.3 361.5 470.7 S28.6 310.6 564.4
VAH030 30000 117.0 191.6 244.3 272.6 239.7 303.3 512.1 575.1 332.7 822.8
VAH035 36000 136.3 223.3 284.7 317.7 268.2 440.1 573.0 643.5 388.1 726S
VAH040 40000 156.1 256.7 326.0 363.8 307.5 504.6 657.0 737.3 443.5 830.2
VAH045 45000 169.2 277.2 363.4 394.4 364.4 581.6 757.2 850.3 498.9 933.9
VAH050 50000 181.8 297.8 379.7 423.7 393.3 645.4 840.3 943.7 564.3 1037.6
VAH055 55000 203.4 333.2 424.8 474.1 436.7 716.6 933.0 1047.8 609.7 1141.3
VAH060 60000 226.8 371.5 473.7 528.6 481.6 790.3 1029.0 1156.6 665.1 1245.0
VAH070 70000 266,7 436.9 667.0 621.6 548.2 899.6 1171.3 1315.4 775.9 1452.4
VAH080 80000 307.2 503.2 641.6 716.0 636.6 1044.7 1380.2 1527.5 886.7 1659.9
VAH090 90000 345.7 566.3 722.0 805.8 714.5 1172.5 1526.6 1714.4 997.5 1867.3
VAH100 100000 384 1 629.2 802.2 895.3 786.4 1290.5 1680.2 1886.9 1108.3 2074.7
VAH110 110000 398.4 652.6 832.1 928.6 - - - - 1219.1 2282.1
VAH120 120000 41.3 678.8 865.2 985.6 - - - - 1329.9 2489.5
VAH130 130000 452.9 741.9 945.9 1055.6 - - - - 1440.7 2696 9
VAH140 140000 491.8 806.6 1027.1 1146.2 - - - - 1551.5 2904.4
VAH150 150000 523.7 857.8 1083.7 1130.6 - - - - 1662.3 3111.8
VAH160 160000 557.2 912.7 1163.7 1298.7 - - - - 1745.0 3279.3
VAH170 170000 586.3 960.4 1224.5 1366.5 - - - - 1854.0 3484.3
VAH180 180000 616.0 1009.0 1296.5 1435.7 - - - - 1963.1 3689.2
VAH190 190000 647.1 1060.0 1351.5 1508.3 - - - - 2072.1 3894.2
VAH200 200000 678.5 1111.4 1417.0 1581.4 - - - - 2143.6 4061.5
VAH220 220000 736.4 1206.2 1537.9 1716.3 - - - - 2399.3 4609.0
VAH250 2S0000 817.6 1339.2 1707.5 1905.6 - - - - 2879.5 5029.9




*Cold water cooling condition: return air :DB 27℃/WB 19.5℃; fresh air DB35℃/WB28℃;cold water inlet/outlet 7℃/12℃.

*Heat water cooling condition: return air :DB 15℃/fresh air DB 7℃;inlet/outlet water: 60℃/50℃.

*Heating retur air condition: DB 15℃,fresh air:DB 7 ℃/vapor inlet:115℃,pressure:0.2Mpa.



Floor Standing Air Conditioner

A floor standing air conditioner is another type of split air conditioner with the difference that the indoor unit is kept on the floor. The other aspects remain the same. There is a refrigerant pipe that connects to a condenser unit outside the premises.

The floor-standing AC is typically available in higher capacities than split ductless wall mounted aircons. The standing ACs are ideal for large halls that the glass windows. The glass allows heat to be trapped inside the premises.

Since the source of heat is located at one corner of the hall, floor standing air conditioners do a better job of maintaining a uniform temperature inside. They trap the heat at the source and vent it off to the atmosphere.

Floor standing units are expensive because they typically have a capacity higher than 3 tons. Multiple fans add to the cost. However, considering the benefits of a floor standing AC, the pros outweigh the cons.
