496mm Width 40db Central Air Conditioning Unit Floor Standing

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Horizontal Concealed Fan Coil Units

Detail Information
Product Name: Horizontal Concealed Fan Coil Units Lead Time: 30 Days After Receiving Prepayment
Retun Air: DB 27℃/WB 19.5℃ Warranty: 2 Years After Date Of Shipment
Payment Term: TT,LC Certificate: CE
Business Type: Factory Trademark: VENTECH
High Light:

40db Central Air Conditioning Unit

,

496mm Width Central Air Conditioning Unit

,

Floor Standing Air Conditioning Unit

Product Description

Air conditioning unit central air conditioner home depot Horizontal Concealed Fan Coil Units

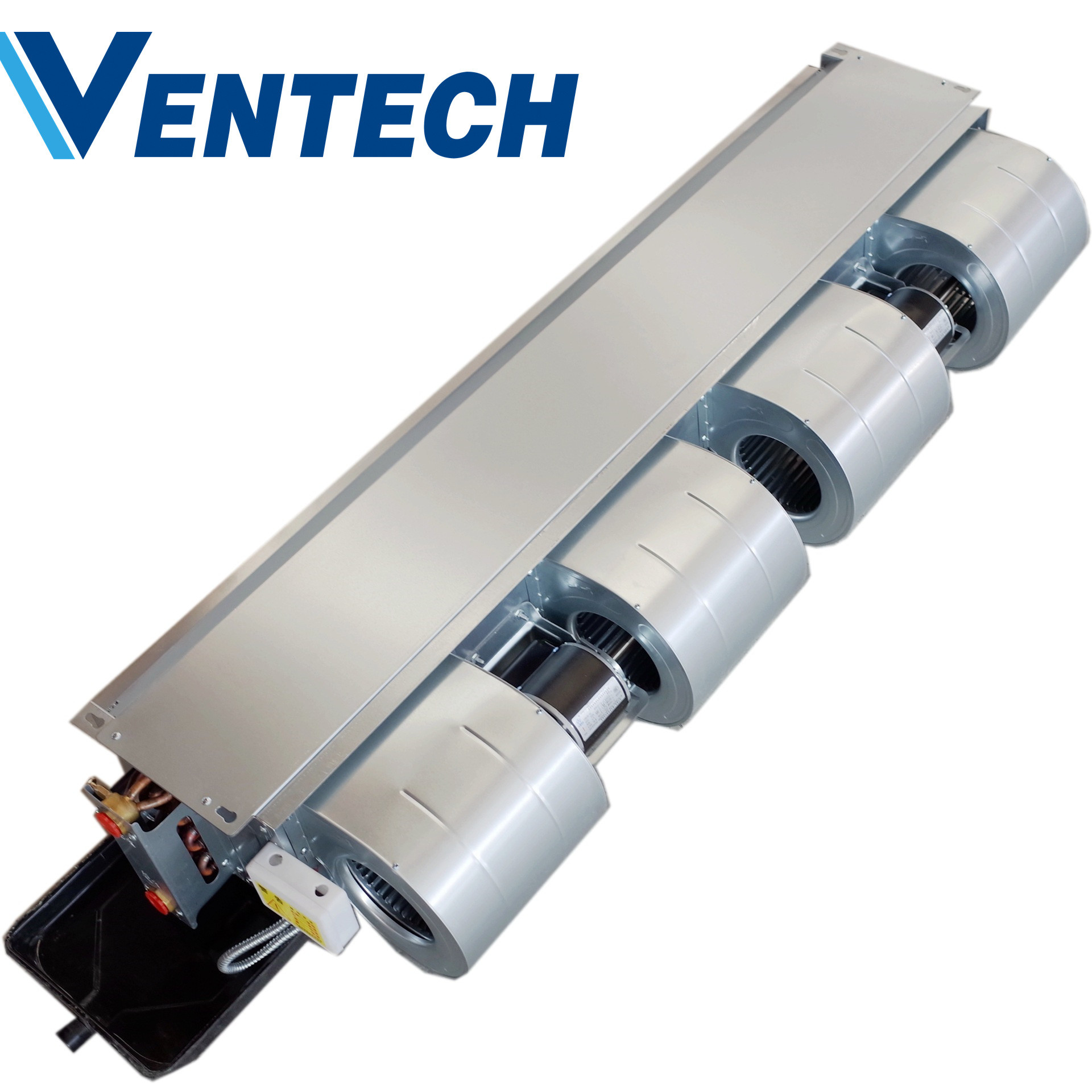

VENTECH(Vcare) Air Conditioning Unit Central Air Conditioner Horizontal Concealed Fan Coil Units

Horizontal Concealed FCU specification table       Vertical coil three pipes system
Model FP WA*-3* 200 300 400 500 600 700 800 1000 1200 1400
Air volume H m3/h 340 510 680 850 1020 1200 1360 1700 2040 2380
M 280 380 515 660 705 910 1040 1280 1560 1800
L 1B0 260 340 430 530 610 710 860 1060 1190
Cooling capacity H W 2020 3010 3700 4560 5600 6400 7600 9000 10800 12600
M 1683 2742 3000 3716 4424 5630 6435 7470 9296 10623
L 1561 2293 2479 2921 3793 4905 5606 7200 8543 8820
Heating capacity H W 3500 5300 6700 8200 10100 10940 13500 15000 18900 20000
M 2526 3533 5153 5954 7099 8057 9906 11560 15163 18600
L 1682 2321 3449 4258 4833 S558 6774 7500 10085 14240
Motor Input power(H) Normal ESP (12Pa) W 37 52 62 76 96 113 134 152 189 228
High ESP (30Pa) 44 69 72 87 108 134 156 174 212 253
Super High ESP
(50Pa)		 49 66 84 100 118 158 174 210 250 300
Heat exchanger (3-pipe) Cooling/
Heating		 Water flow m3/h 0.367 0.517 0.638 0 796 0.978 1.128 1.371 1.516 1 822 2.152
Water drop pressure kPa 17 22 18 20 30 20 30 30 30 40
Noise H Normal ESP (12Pa) dB(A) ≤37 ≤39 ≤41 ≤43 ≤45 ≤47 ≤46 ≤48 ≤50 ≤52
High ESP (30Pa) ≤40 ≤42 ≤44 ≤46 ≤47 ≤49 ≤48 ≤50 ≤52 ≤54
Super High ESP
(50Pa)		 ≤42 ≤44 ≤46 ≤47 ≤49 ≤51 ≤50 ≤52 ≤54 ≤56
Dimension Length mm 655 785 885 945 1065 1185 1405 1525 1725 1925
Width 496 466 466 466 466 466 466 466 466 466
Height 243 243 243 243 243 243 243 243 243 243
Unit weight No return air box KG 12 14 16 17 18 19 26 29 32 35




*Cold water cooling condition: return air :DB 27℃/WB 19.5℃; fresh air DB35℃/WB28℃;cold water inlet/outlet 7℃/12℃.

*Heat water cooling condition: return air :DB 15℃/fresh air DB 7℃;inlet/outlet water: 60℃/50℃.

*Heating retur air condition: DB 15℃,fresh air:DB 7 ℃/vapor inlet:115℃,pressure:0.2Mpa.





Common Air Conditioning Systems

For homes, the following are the most prevalent types of air conditioners

  • Window AC
  • Single Split Ductless AC
  • Multiple Split Ductless AC
  • Cassette AC
  • Ducted AC system
  • Portable AC
  • Floor Standing AC, and
  • Central Air Conditioning

We shall now proceed to compare the individual aircon systems and uncover how they are different from their counterparts.
