DB 27℃ Central Air Conditioner Concealed fan coil unit Ac Units

Minimum Order Quantity : 1 unit Price : 1000USD-5000USD/unit
Packaging Details : standard pallet packing Delivery Time : 30-60days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Containers Per Month
Place of Origin: CHINA Brand Name: VENTECH
Certification: CE Model Number: Horizontal Concealed Fan Coil Units

Detail Information

Product Name: Horizontal Concealed Fan Coil Units Working Pressure: Different Working Pressure
Retun Air: DB 27℃/WB 19.5℃ Length: MAX:50ft
Model: Rooftop Package Unit Size: Customized
Lead Time: 30 Days After Receiving Prepayment Warranty: 2 Years After Date Of Shipment
High Light:

DB 27℃ Central Air Conditioner

,

Combo Home Central Air Conditioner

Product Description

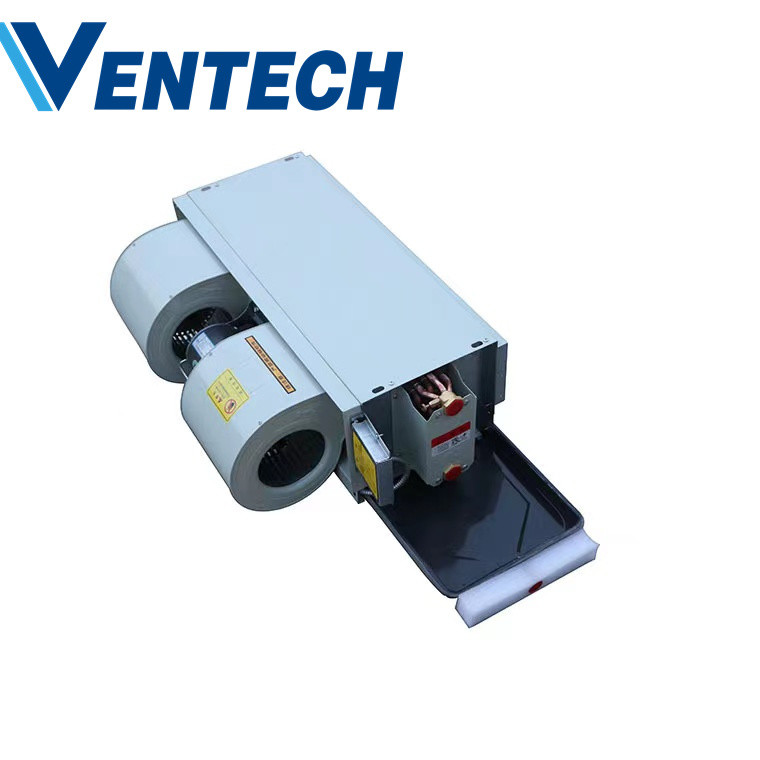

Air conditioning unit central air conditioner heater combo Horizontal Concealed Fan Coil Units

VENTECH(Vcare) Air Conditioning Unit Central Air Conditioner Horizontal Concealed Fan Coil Units

Horizontal Concealed FCU specification table       Vertical coil three pipes system
Model FP WA*-3* 200 300 400 500 600 700 800 1000 1200 1400
Air volume H m3/h 340 510 680 850 1020 1200 1360 1700 2040 2380
M 280 380 515 660 705 910 1040 1280 1560 1800
L 1B0 260 340 430 530 610 710 860 1060 1190
Cooling capacity H W 2020 3010 3700 4560 5600 6400 7600 9000 10800 12600
M 1683 2742 3000 3716 4424 5630 6435 7470 9296 10623
L 1561 2293 2479 2921 3793 4905 5606 7200 8543 8820
Heating capacity H W 3500 5300 6700 8200 10100 10940 13500 15000 18900 20000
M 2526 3533 5153 5954 7099 8057 9906 11560 15163 18600
L 1682 2321 3449 4258 4833 S558 6774 7500 10085 14240
Motor Input power(H) Normal ESP (12Pa) W 37 52 62 76 96 113 134 152 189 228
High ESP (30Pa) 44 69 72 87 108 134 156 174 212 253
Super High ESP
(50Pa)
49 66 84 100 118 158 174 210 250 300
Heat exchanger (3-pipe) Cooling/
Heating
Water flow m3/h 0.367 0.517 0.638 0 796 0.978 1.128 1.371 1.516 1 822 2.152
Water drop pressure kPa 17 22 18 20 30 20 30 30 30 40
Noise H Normal ESP (12Pa) dB(A) ≤37 ≤39 ≤41 ≤43 ≤45 ≤47 ≤46 ≤48 ≤50 ≤52
High ESP (30Pa) ≤40 ≤42 ≤44 ≤46 ≤47 ≤49 ≤48 ≤50 ≤52 ≤54
Super High ESP
(50Pa)
≤42 ≤44 ≤46 ≤47 ≤49 ≤51 ≤50 ≤52 ≤54 ≤56
Dimension Length mm 655 785 885 945 1065 1185 1405 1525 1725 1925
Width 496 466 466 466 466 466 466 466 466 466
Height 243 243 243 243 243 243 243 243 243 243
Unit weight No return air box KG 12 14 16 17 18 19 26 29 32 35




*Cold water cooling condition: return air :DB 27℃/WB 19.5℃; fresh air DB35℃/WB28℃;cold water inlet/outlet 7℃/12℃.

*Heat water cooling condition: return air :DB 15℃/fresh air DB 7℃;inlet/outlet water: 60℃/50℃.

*Heating retur air condition: DB 15℃,fresh air:DB 7 ℃/vapor inlet:115℃,pressure:0.2Mpa.





Upgrading an existing system
If you’re upgrading your central air, don’t assume you should buy the same-sized system. Any changes you’ve made to improve your home’s energy efficiency, such as upgrading your windows or adding insulation, can reduce your cooling needs. On the other hand, if you’ve added rooms, you might need more cooling.

Have your contractor do a load calculation based on a recognized method, such as one in Manual J from the ACCA. The contractor’s evaluation should include whether your ducts need to be resized, sealed, and insulated, or replaced. Remember that an indoor evaporator coil and outdoor condenser must be a matched set from the same brand, or the performance, efficiency, and capacity might not meet expectations.

New systems are 20 to 40 percent more efficient than minimum-efficiency models made even 10 years ago. Costs will vary and can depend on whether you need ductwork installed, and the particular size and configuration of your home.

Air conditioning requirements across the world are increasing at a significant rate. An increase in temperature, heatwaves, and unpredictable weather is one driver for the high demand. An increase in energy efficiency and affordability is the primary demand driver. Individual requirements vary extensively, and manufacturers are innovating rapidly.

To cater to the varied requirements of home-owners, the manufacturers have made available a wide variety of air conditioners.



Want to learn more about Vcare Wholehouse air onditioner,please contact us by email directly.                                                     Email:karen@chinaventech.com Tel:0086 13620119598
