Air Flow 12000m3/H 6 Ton Central Air Unit Dual Refrigeration System
Contact Person : Daisy
Phone Number : 86-13425728677
WhatsApp : +8613425728677
Minimum Order Quantity : | 1 unit | Price : | 1000USD-5000USD/unit |
---|---|---|---|
Packaging Details : | standard pallet packing | Delivery Time : | 30-60days |
Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 50 Containers Per Month |
Place of Origin: | CHINA | Brand Name: | VENTECH |
---|---|---|---|
Certification: | CE | Model Number: | Ceiling cassette FCU |
Detail Information |
|||

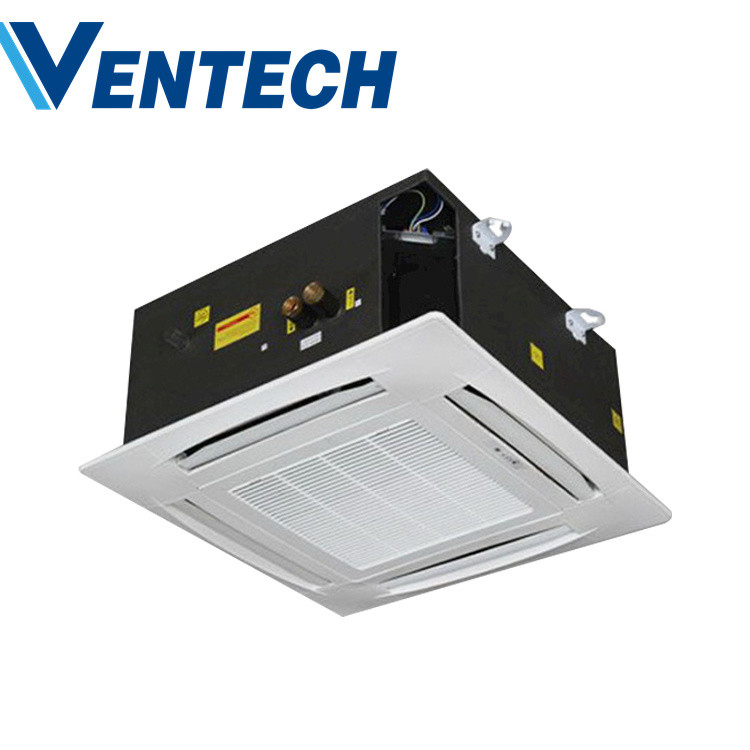

Product Name: | Ceiling Cassette FCU | Package: | Pallet Packing |
---|---|---|---|
Quality: | Best | Cooling/Heating: | Both |
Size: | Customized | Operating Voltage: | Depends On The Country |
Price Term: | FOB China | Payment Term: | TT |
High Light: | Mounting Brackets Ceiling Cassette FCU,Custom Ceiling Cassette FCU |
Product Description
With its heavy gauge steel cabinet, powder paint finish, and composite blower housing the modular blower is designed to keep you comfortable year after year.
The VENTECH variable speed blower adjusts to deliver consistent heating and cooling, reduces noisy system startups, and helps you save energy.
Exclusive blower housing and fully insulated cabinet design reduce operating noise – keeping you comfortable without the extra noise.
The VENTECH modular blower helps reduce your home’s carbon footprint by operating entirely on electricity.
Each VENTECH modular blower can be paired with a Professional CleanEffects® Whole Home Air Cleaner model for advanced air filtration that removes more dust, pollen, and other irritants for a cleaner, healthier home.
Model | FP200KM4 | FP300KM4 | FP400KM4 | FP500KM4 | FP600KM4 | FP800KM4 | FP1000 KM4-Q |
FP1200KM4 | FP1400KM4 | |||
Air volume | Q | H | m3/h | 360 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
M | 250 | 420 | 560 | 650 | 780 | 1050 | 1310 | 1570 | 1830 | |||
L | 200 | 350 | 460 | 520 | 600 | 800 | 1010 | 1210 | 1410 | |||
Z | H | m3/h | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | |
M | 280 | 390 | 520 | 650 | 785 | 1030 | 1380 | 1530 | 1980 | |||
L | 230 | 300 | 400 | 500 | 605 | 860 | 1060 | 1170 | 1650 | |||
Cooling capacity | Q | H | W | 2000 | 2710 | 3620 | 4530 | 5440 | 7200 | 9100 | 10500 | 12500 |
M | 1700 | 2410 | 3100 | 3830 | 4485 | 6000 | 7050 | 8560 | 10500 | |||
L | 1500 | 2140 | 2750 | 3360 | 3500 | 4500 | 5500 | 6710 | 8450 | |||
Z | H | W | 1750 | 2620 | 3500 | 4370 | 5400 | 7000 | 8750 | 10500 | 12150 | |
M | 1410 | 2250 | 2920 | 3645 | 4440 | 5890 | 7340 | 8800 | 10130 | |||
L | 1020 | 1860 | 2430 | 3040 | 3745 | 4900 | 6110 | 7260 | 8450 | |||
Heating capacity | Q | H | W | 3000 | 4070 | 5440 | 6800 | 8160 | 10800 | 13700 | 16000 | 18600 |
M | 2810 | 3520 | 4650 | 5750 | 6700 | 9350 | 10600 | 13700 | 15260 | |||
L | 2480 | 3150 | 4130 | 5100 | 5200 | 7690 | 8300 | 11200 | 12700 | |||
Z | H | W | 2770 | 4130 | 5250 | 6750 | 8100 | 10500 | 13120 | 15730 | 17500 | |
M | 1990 | 3010 | 4370 | 5460 | 6450 | 8750 | 10940 | 12530 | 14580 | |||
L | 1310 | 2530 | 3645 | 4370 | 5190 | 7290 | 8990 | 10920 | 12150 | |||
Noise level | Q | ≤dB(A) | ≤dB(A) | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 | 52 |
Z | ≤dB(A) | ≤dB(A) | 37 | 39 | 41 | 43 | 45 | 46 | 47 | 50 | 52 | |
Power source | V/Ph/Hz | V/Ph/Hz | 220-240V/1/50Hz | |||||||||
Motor | Q | Input | W | 46 | 52 | 70 | 80 | 93 | 130 | 150 | 231 | 268 |
Z | Input | W | $32 | 36 | 36 | 60 | 66 | 90 | 124 | 180 | 225 | |
Heat exchanger | Type | Copper pipe with aluminum fins | ||||||||||
Q cooling |
Water flow | m3/h | 0.31 | 0.48 | 0.65 | 0.81 | 0.98 | 1.28 | 1.65 | 1.99 | 2.26 | |
WPD | kPa | 10 | 18 | 22 | 28 | 37 | 35 | 30 | 35 | 50 | ||
Q heating |
Water flow | m3/h | 0.31 | 0.48 | 0.65 | 0.81 | 0.98 | 1.28 | 1.65 | 1.99 | 2.26 | |
WPD | kPa | 10 | 18 | 22 | 28 | 37 | 35 | 30 | 35 | 50 | ||
Z cooling |
Water flow | m3/h | 0.3 | 0.46 | 0.63 | 0.79 | 0.96 | 1 26 | 1.63 | 1.97 | 2.24 | |
WPD | kPa | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 40 | 50 | ||
Z heating |
Water flow | m3/h | 0.3 | 0. 46 | 0.63 | 0.79 | 0.96 | 1.26 | 1.63 | 1.97 | 2. 24 | |
WPD | kPa | 30 | 30 | 30 | 30 | 40 | 40 | 40 | 40 | 50 | ||
Max working pressure | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | ||
Dimension | Q | Length | mm | 650 | 650 | 650 | 850 | 850 | 850 | 1050 | 1050 | 1050 |
Z | mm | 620 | 620 | 790 | 790 | 1040 | 1140 | 1140 | 1140 | 1140 | ||
Q | Width | mm | 650 | 650 | 650 | 850 | 850 | 850 | 1050 | 1050 | 1050 | |
Z | mm | 620 | 620 | 790 | 790 | 790 | 790 | 990 | 990 | 990 | ||
Q | Height | mm | 278 | 278 | 318 | 318 | 318 | 318 | 318 | 318 | 318 | |
Z | mm | 430 | 430 | 430 | 430 | 430 | 430 | 430 | 430 | 430 | ||
Unit net weight | Q | kg | 26 | 26 | 28 | 34 | 34 | 36 | 50 | 50 | 50 | |
Z | kg | 27 | 27 | 32 | 32 | 37 | 39 | 49 | 49 | 49 |
